Visual Basic DllFunctionCall

Author: Paolo

# Views: 3243

Recently, static analysis of Visual Basic executables has been made easier by the release of a very nice IDC script by Reginald Wong. On top of its analysis, I decided to create a script to automatically handle DllFunctionCall.

DllFunctionCall is found in the implementation of the Visual Basic Declare statements, that are used to call Windows API functions in Visual Basic 5/6 programs.

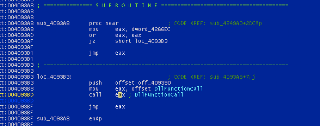

For example, lots of VB malwares do use such mechanism to call Windows APIs. Lets consider a simpe autorun VB worm: we load it into IDA, run the script provided by Reginald Wong, and start analyzing it. Analyzing the code, we find several references to code of this kind:

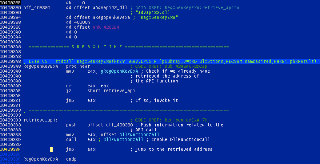

With a bit of manual intervention, the purpose of this code becomes clearer:

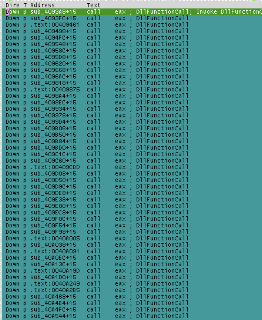

Analyzing this was easy. However, if we look at the number of calls to DllFunctionCall, we find that there are quite a lot of such calls, more than we do want to fix manually:

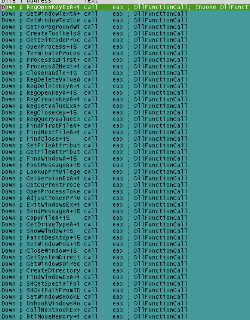

So I wrote a little script to handle this automatically: it will create functions where needed, will name functions properly and add type information. The previous list after running the script becomes:

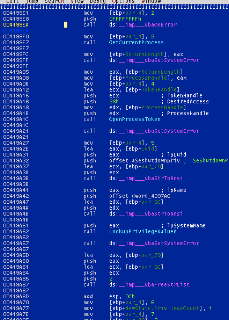

and:

Hopefully this will make your VB reversing sessions easier;) You can fetch the script here.

If you wish to comment on this blog entry, please do so on the original site it was imported from.
